- FL-SF/R

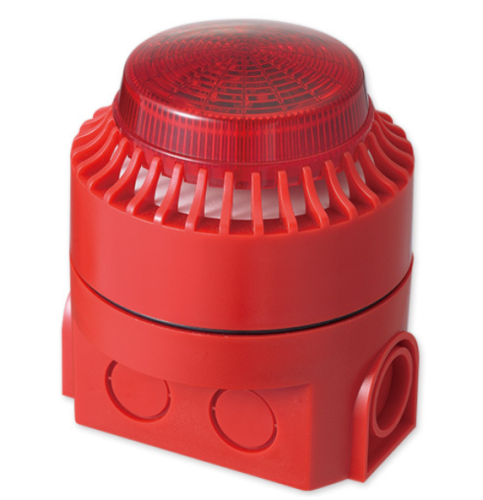

- CONVENTIONAL FIRE ALARM SIREN WITH ELECTRONIC SOUNDER AND BEACON
- Electronic Sounder and Beacon
- General:
- This electronic sounder is designed for use with fire alarm systems, security systems and industrial signaling systems. Combined sounder and beacon provides and audio-visual warning with is suitable for places where high sound output and visual indication is required.
- Characteristics:
- Comply to EN54-3, Type B Sonder Beacon
- 32 signal tones selectable by Dip switch.
- High efficiency lens for maximum light output.
- High sound output with low current consumption.
- Volume Control as standard.
- Two sets of IN and OUT terminals,easy for installation.
- Specifications:
- Model:FL-S/R
- Voltage:24V DC
- Current Consumption 24V DC (tone 3):14.5mA
- Sound Output 24V DC dB (A) at 1 meter:Max. 114
- Volume Control:0 to -20dB adjustment
- Ingress Protection:IP44
- Ambient Temperature: -25°C~+80°C
- Material:ABS plastic
- Dimensions:92.5mm(Dia.) x 94mm(H)
- Weight:278g
- Made in :Taiwan
- Order information:
- FL-S/R Electronic Sounder and Beacon
