Protect your property and loved ones. Conventional fire alarm control panel: Early warning ensures a rapid response time.
Now available at alnajmaalwataniyah

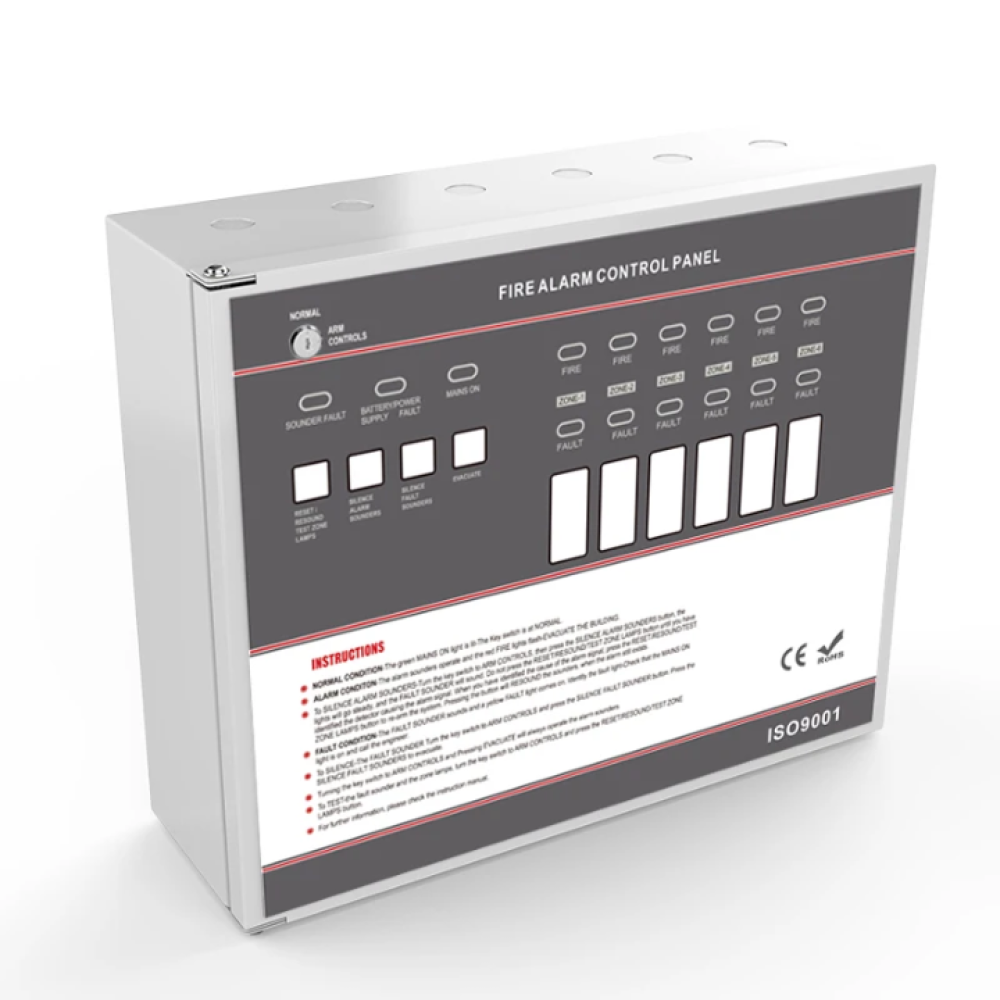

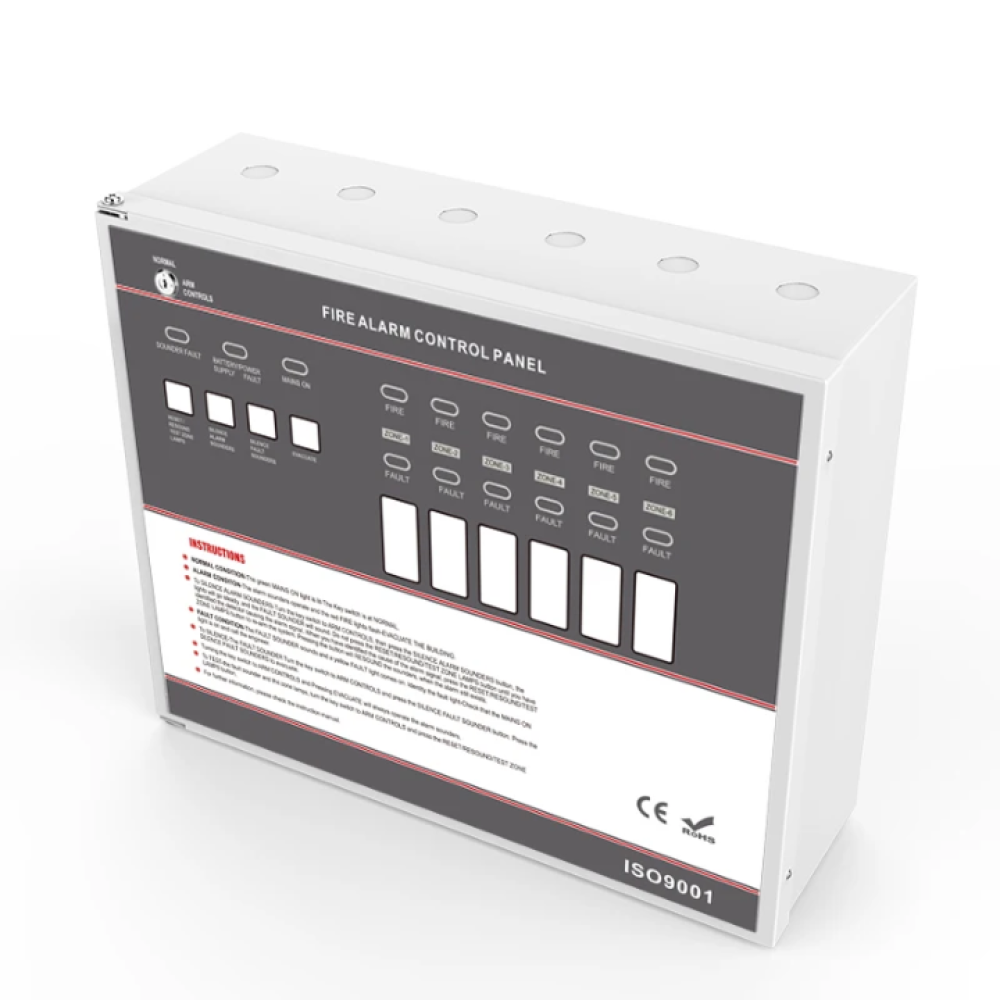

- conventional fire alarm control panel is an ideal solution for small and medium-sized buildings that require slightly higher location accuracy than single-zone systems. This panel serves as the central brain of the fire alarm system, continuously monitoring fire detectors and triggering alarms when needed.
Electrical Specifications:
- Main Power Supply Voltage: AC 220-230V
- Rated Current: 130mA
- Battery Voltage: DC 24V
- Internal Power Supply: DC 27V
- Total Output Current: ≤ 400mA
- Number of Detector Circuits: 2 Zones
- Number of Probe Circuits: 2 Zones
- Line Terminal Resistance: 6.8 Ω, 5%
- Auxiliary Fire Output Type: 24V Relay
- Dimensions: 275 x 200 x 75 mm
- Made in China
How Does Control Panel Work?
- A traditional control panel allows you to divide a building or space into two independent fire detection zones. For example, you can allocate:
- Zone 1: For the ground floor or a specific part of the warehouse.
- Zone 2: For the first floor or a separate office area.
- When a detector (such as a smoke detector or manual glass breaker) is activated in either zone, the control panel clearly shows the zone in which the alarm originated. This offers a significant advantage over single-zone panels, reducing the time required to locate a hazard and allowing for a faster and more accurate response.
Key Connected Components:
- zone panel connects to a variety of fire alarm devices, including:
- Smoke detectors:
- To detect the presence of smoke.
- Heat detectors:
- To sense a rapid rise in temperature or a specific temperature.
- Manual call points (glass breakers): To enable personnel to manually activate the alarm.
- Bells/sirens and strobe lights: To alert building occupants visually and audibly.
Advantages of a Traditional Control Panel:
- Better Location: Helps pinpoint the approximate location of a fire more quickly than single-zone panels. Cost-effective: They are still significantly less expensive than addressable fire alarm systems, making them an economical option for individuals on a budget. Easy installation and maintenance: Their simple design makes them easy to install and maintain by professional technicians.
High reliability:
- A proven and trusted technology for years to protect lives and property.
- Suitable for multiple buildings: Ideal for large shops, restaurants, large villas, multi-room offices, or small sections of factories and warehouses
