PRODUCT INTRODUCTION:

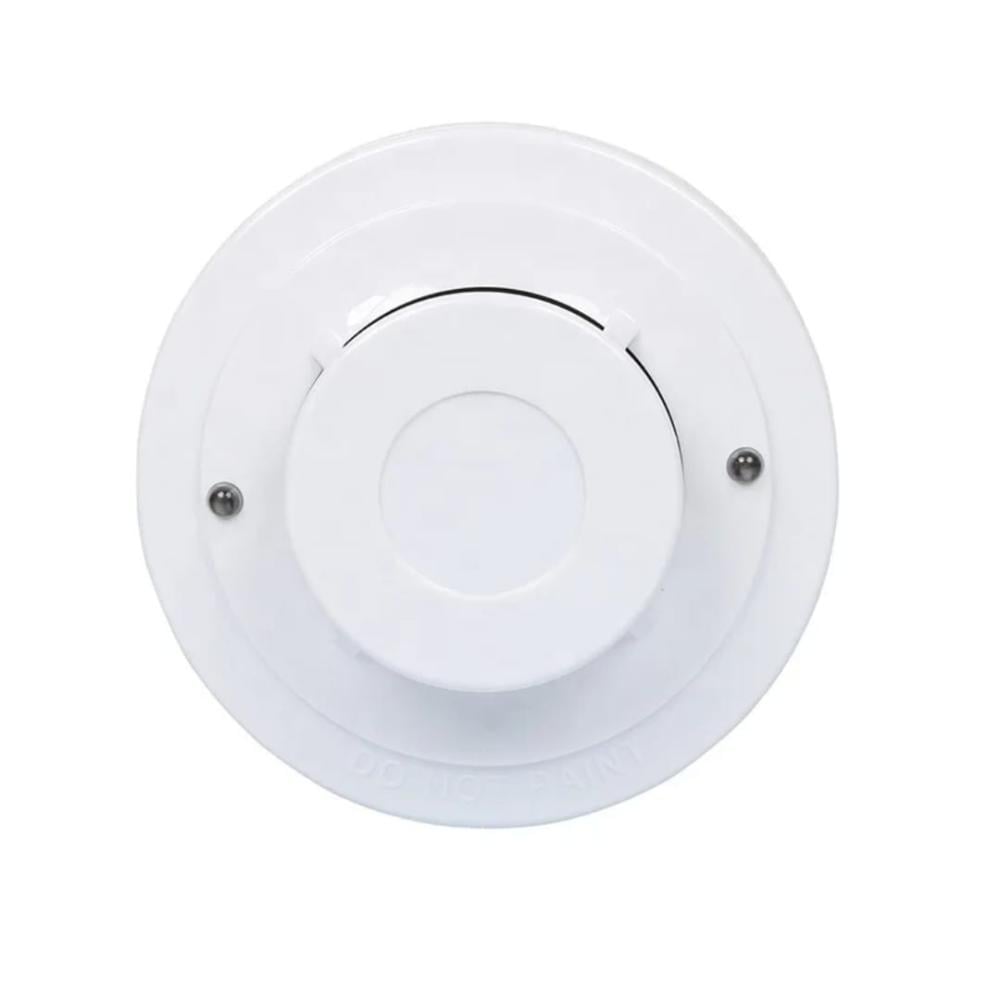

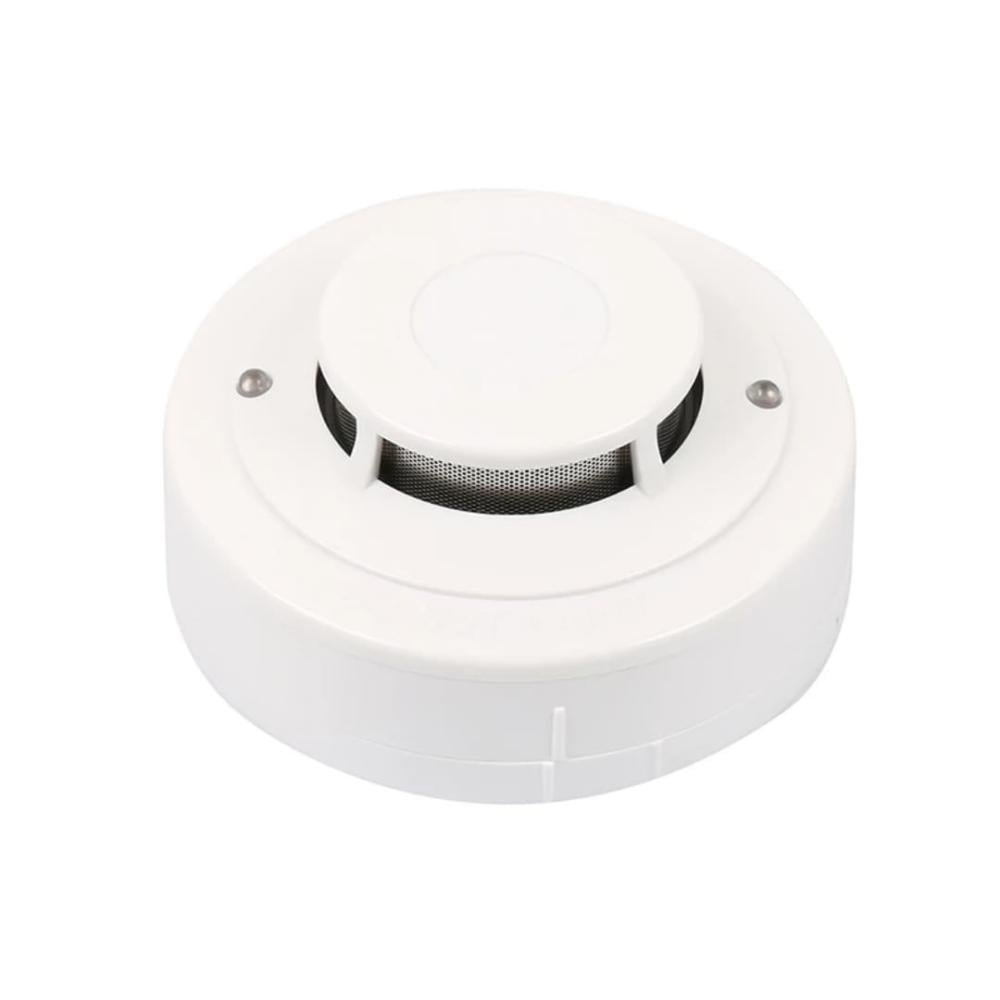

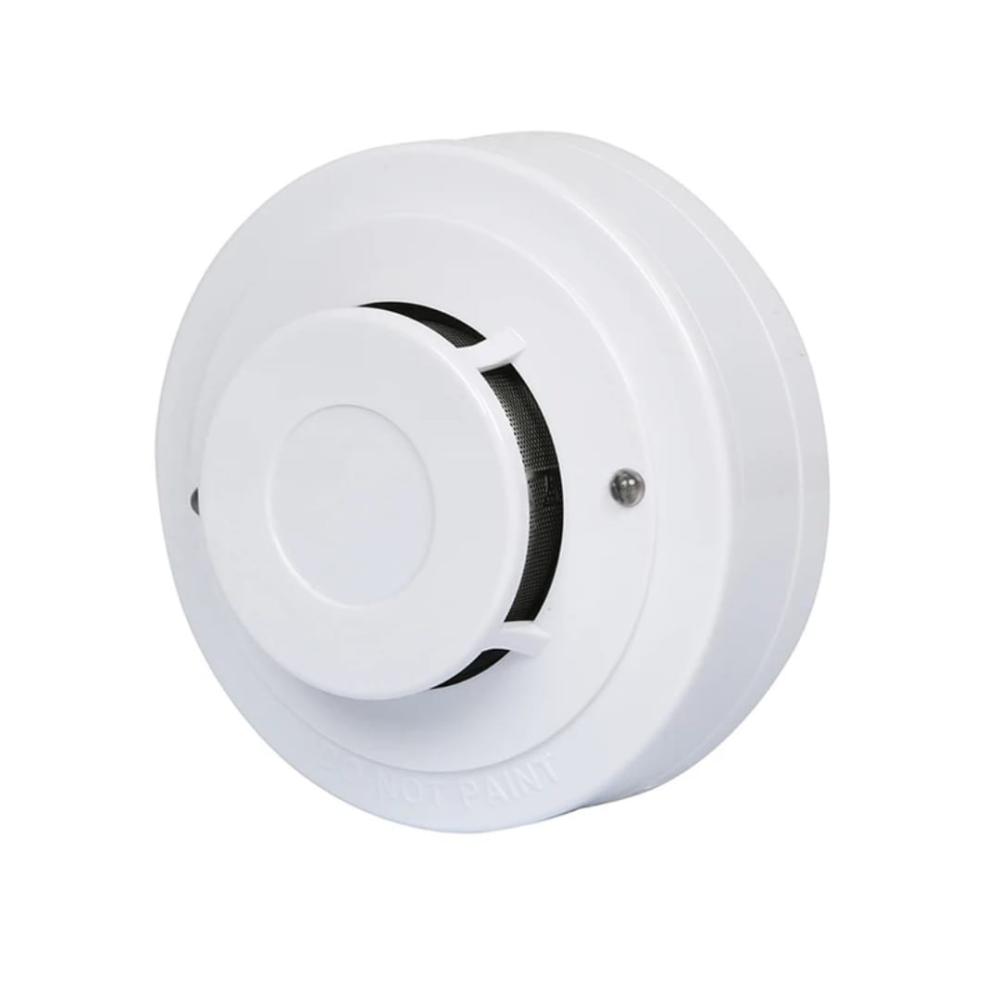

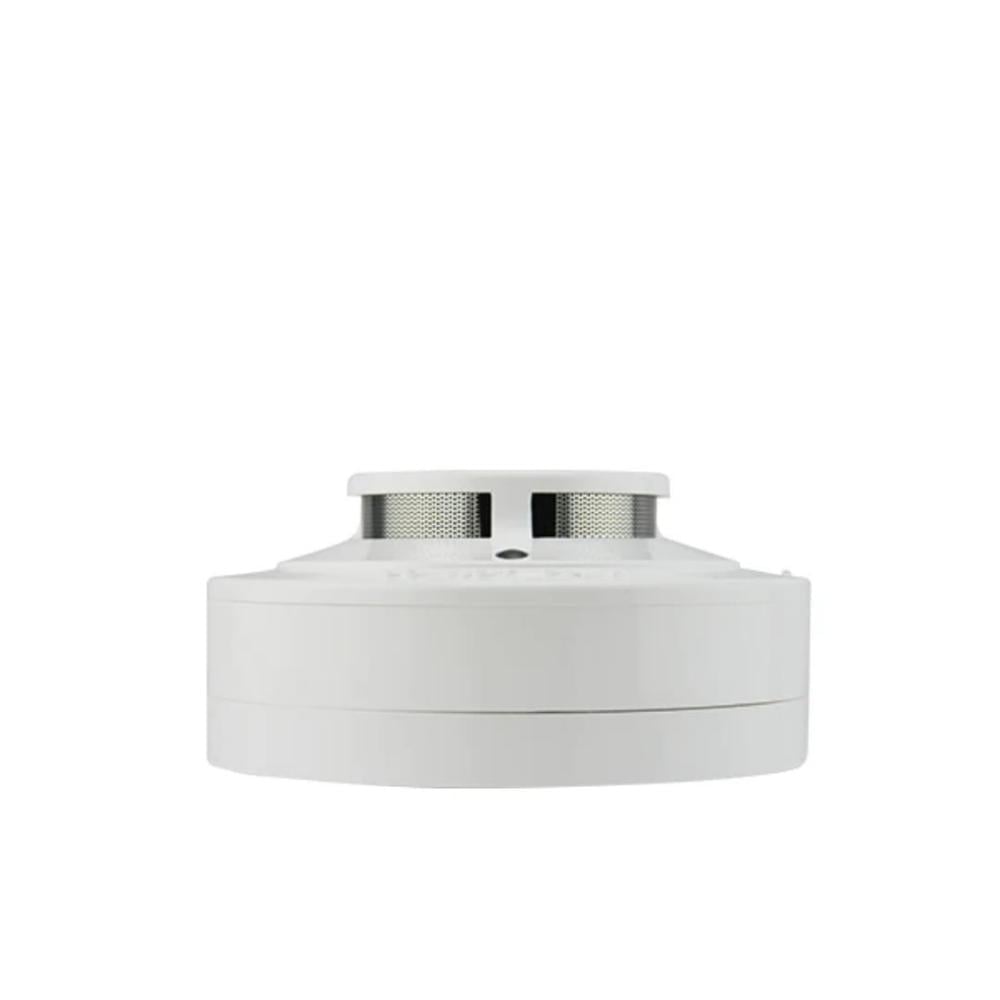

- This heat detector has a combination of rate of rise and fixed temperature heat detection with a coaxial cable, suitable for any household or commercial applications. The detector is made up of an externally mounted thermistor with a specially designed cover that protects the thermistor while allowing maximum air flow. The thermistor reads the temperature from the air it takes in and transmits a signal representing the temperature to the control IC. If the temperature reaches or exceeds the trip point, the detector is triggered. The status LED lights in red, and an alarm signal is output.
PRODUCT FEATURE:
- Strong adaptability for circumstances
- SMT adopted, high stability
- Low standby current
- 9-35VDC wide voltage
- Power supply non-polarized input
- Flashing LED power indicator
- Alarm relay N.C./N.O. optional (4 wires)
- Remote LED indicator output (2 wires)
- Magnetic switch self-test function (optional)
- Fixed temperature detection (default)
- Combination rate-of-rise and fixed temperature detection (optional)
TECHNICAL SPECIFICATION:
- OPERATING VOLTAGE :DC 9V-35V
- STANDBY CURRENT: ≤ 50 uA
- ALARM CURRENT : 20-25 mA @12V - 40-50 mA @24V
- ALARM INDICATION:RED LED ON
- TEMPERATURE RANGE:0℃~+50℃
- ENVIRONMENT HUMIDITY:≤ 95%RH (no condensation)
- ALARM OUTPUT:REMOTE LED
- CONTACT RATING:N/A
- SENSITIVITY:0.08~0.16 dB/m
- STANDARD:EN54-5, UL521,GB4716-2005
- Temperature Trip Point:
- Fixed TEMP: 57°C (135°F)
- Rate-of-rise: 8~15℃/MIN (optional)
- Detecting Range:50 m² at 6~12m Installation Height
- Dimension:98.5mm diameter*43.5mm deep
- MADE IN CHINA
