• 6-inch fire alarm bell is a common and essential component of a fire alarm system, designed to provide a loud, audible alert in the event of a fire or other emergency.

• FL-6B

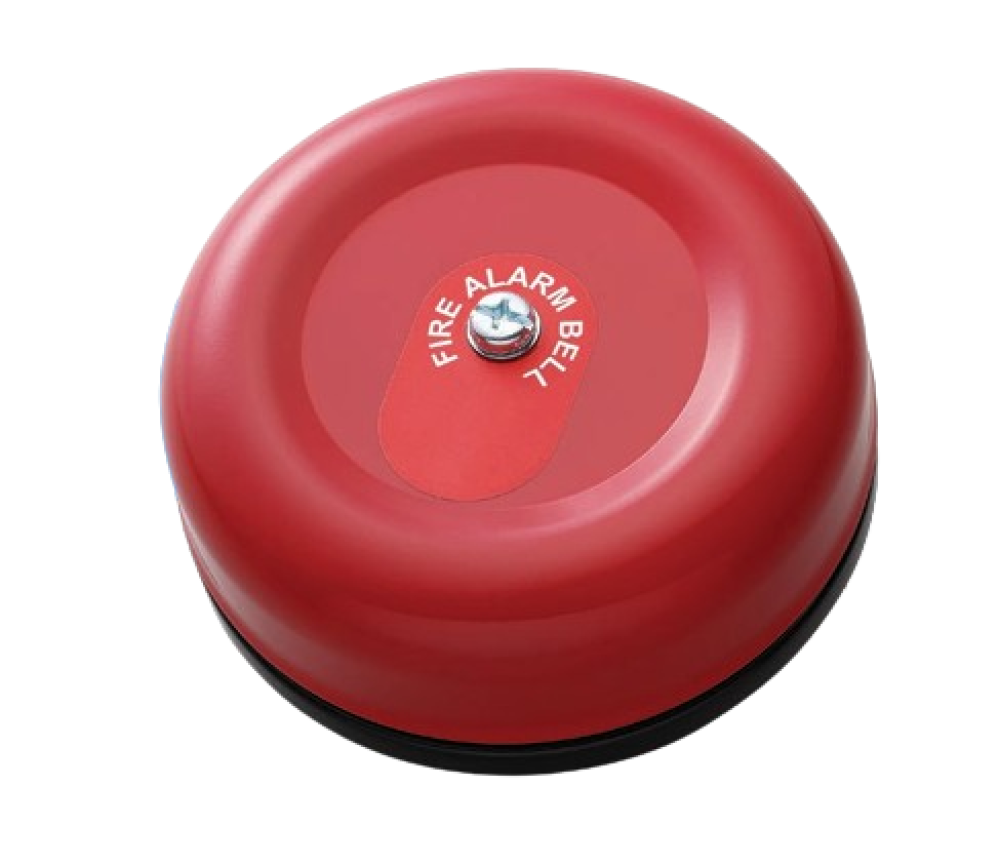

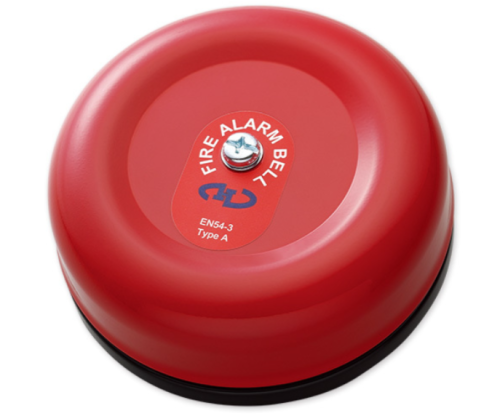

• Fire Link Conventional Fire Alarm Bell 6”
• Features
• • High efficiency low current consumption on 24VDC motorized
• bells.
• • Terminals will accept 2.5mm cables.
• • Simple installation via multi-fixing base plate for all types of
• location.
• • Fitted with two series diodes for fault monitoring.
• • Option of customized discs printed with company name and
• logo.
• • 12VDC bells are also available.

• Specifications
• Model : FL-6B
• Dimensions : ø6" (152mm) x 56mm(H)
• Voltage : 24V DC
• Current : 25mA
• Sound Output : 93dB @1M
• Movement Motor, Pinion and striker
• Movement Features : DC Motor, acetal gear wheel, steel striker
• Gong Steel, secured with phillips screw
• Base Plate : Molded black polycarbonate
• Material:Steel plate
• Weight About 850g
