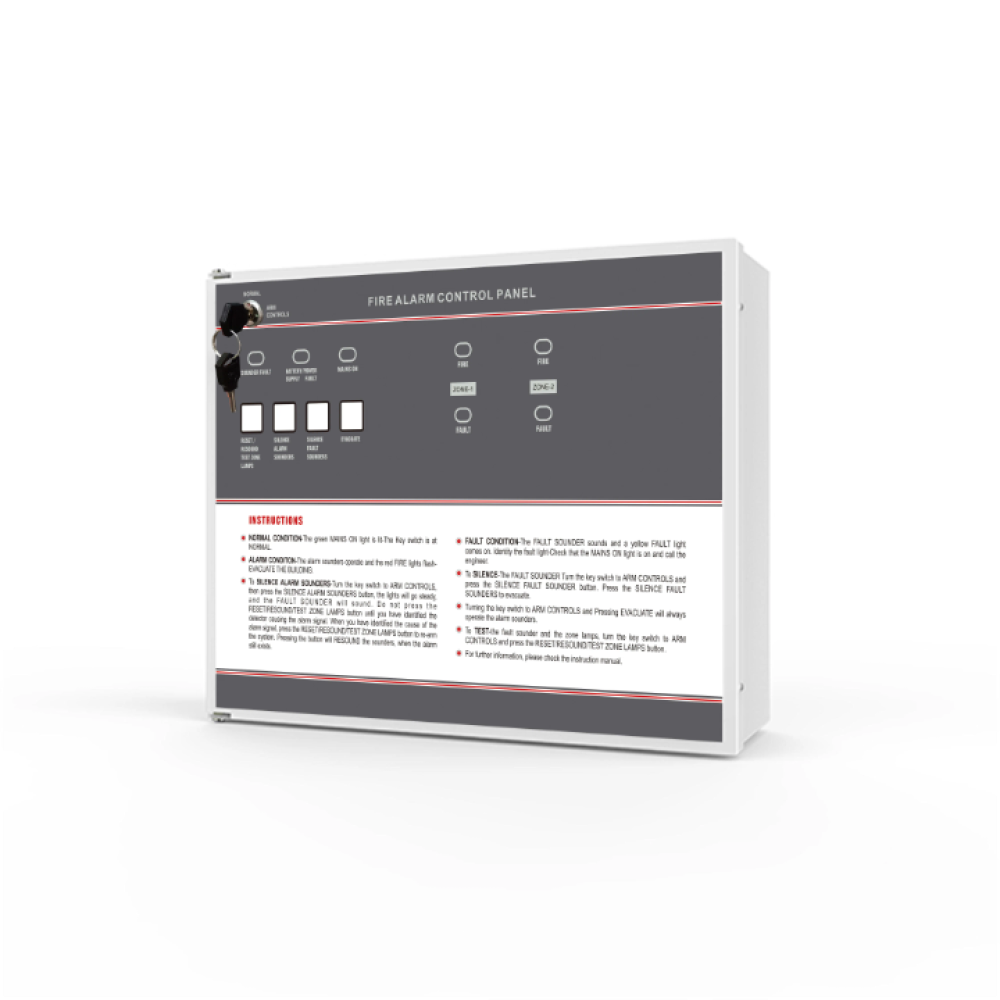

Conventional Fire Alarm Control Panel with 1 Zone is the most basic type of fire alarm system, typically used for small buildings or areas with a very simple layout.
- Electrical Specification:
- MAINS SUPPLY VOLTAGE:AC 220-230V
- RATED CURRENT:130mA
- BATTERY VOLTAGE:DC 24V
- INTERNAL POWER SUPPLY:DC 27V
- TOTAL OUTPUT CURRENT:≤ 400mA
- NUMBER OF DETECTOR CIRCUITS:1 ZONE
- NUMBER OF SOUNDER CIRCUITS:2 ZONES
- END OF LINE RESISTOR:6.8Ω, 5%
- AUXILIARY FIRE OUTPUT TYPE:24V RELAY
- DIMENSION:275*200*75mm
- Made in China
- ISO 9001 Certification
Typical Components Connected to a 1-Zone Panel:
- Smoke Detectors: Photoelectric or ionization.
- Heat Detectors: Fixed temperature or rate-of-rise.
- Manual Call Points (MCPs): Break glass units.
- Fire Alarm Bells/Sounders/Strobes: For audible and visual notification.
- End-of-Line (EOL) Resistor: A resistor placed at the end of the zone circuit to allow the panel to monitor for open circuits.
Common Applications:
- Small shops
- Small offices
- Single-story houses
- Garages or workshops
- Small storage rooms
